Ideal Lux · Eos collection

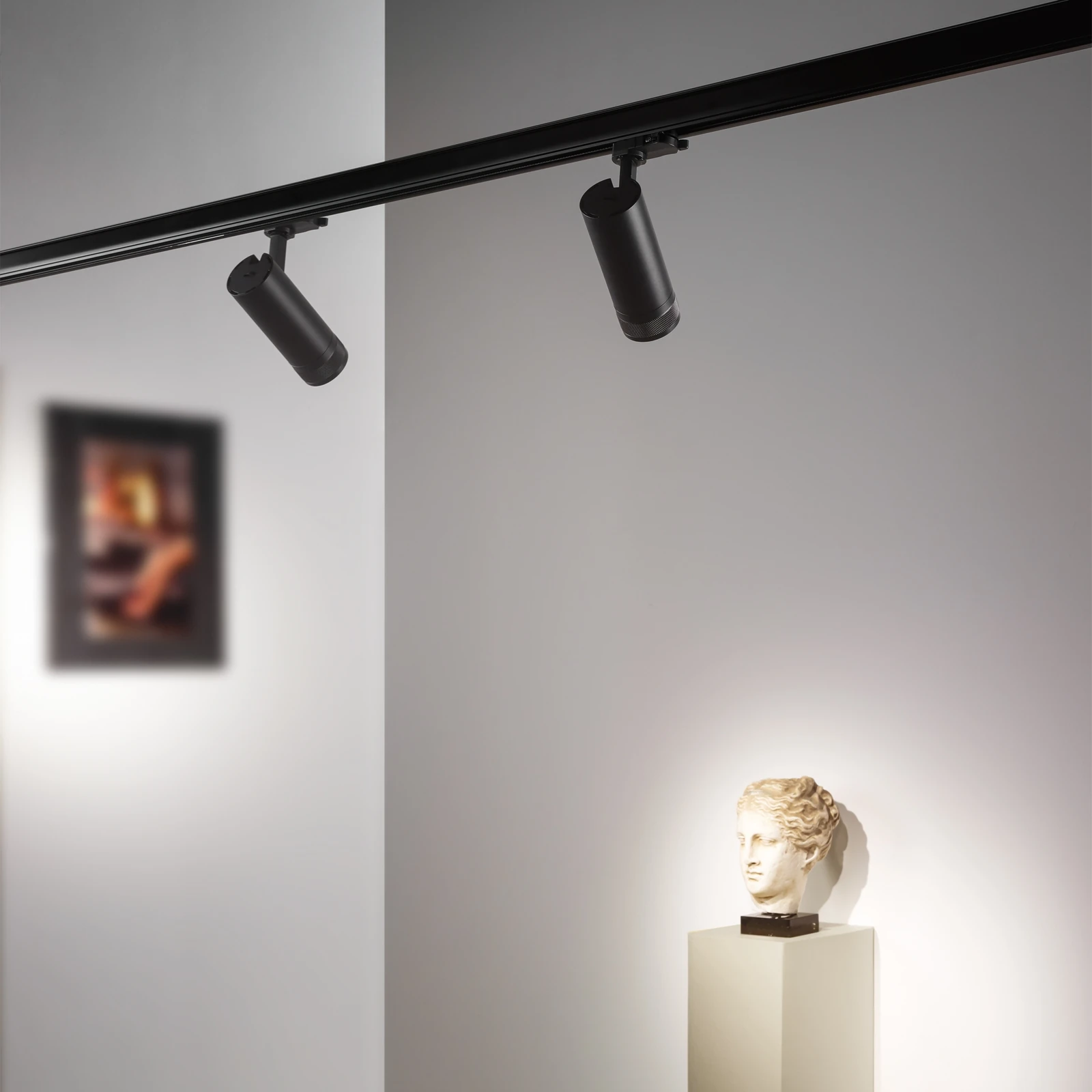

Eos Tr 3-phase 15W 3000K 1-10V (302942)

Price on request · contact us for pricing

Extruded aluminum cylindrical tracklight with variable opening beam from narrow to wide (20°-55°), suitable for single-phase or three-phase LINK track installation.

No payment is taken online. Add everything you need to your enquiry list, then send it to us in one go. We confirm stock, delivery and your final price, usually within one working day. Trade and project pricing on request.

See also: All Ideal Lux Eos · All spotlights · 230V track lighting · Track and magnetic lighting

Specification

Dimensions	L 265,2 × H 222 × D 61,5 mm (L length, H height, D depth)
Light source	Integrated LED 15W
LED lifetime	50000 hours
Colour temperature	3000 K
Light output (LED source)	1700 lumen
IP rating	IP20 (indoor)
Bulb included	Integrated LED
Colour rendering (CRI)	> 90
Light output (from fitting)	1300 lm
Beam angle	20-55°
Dimming	1, 1-10V
Insulation class	II
Operating temperature	0° ~ +40 °C
Warranty	5 years
Net weight	0.66 kg
EAN	8021696302942
Product code	302942

Specification from the Ideal Lux technical sheet (rev. 23-07-2026), checked 2026-10-02. Images © Ideal Lux.
