Ideal Lux · Smile collection
Smile Tr 3-phase 30W CRI80 36° 4000K (189901)
Price on request · contact us for pricing

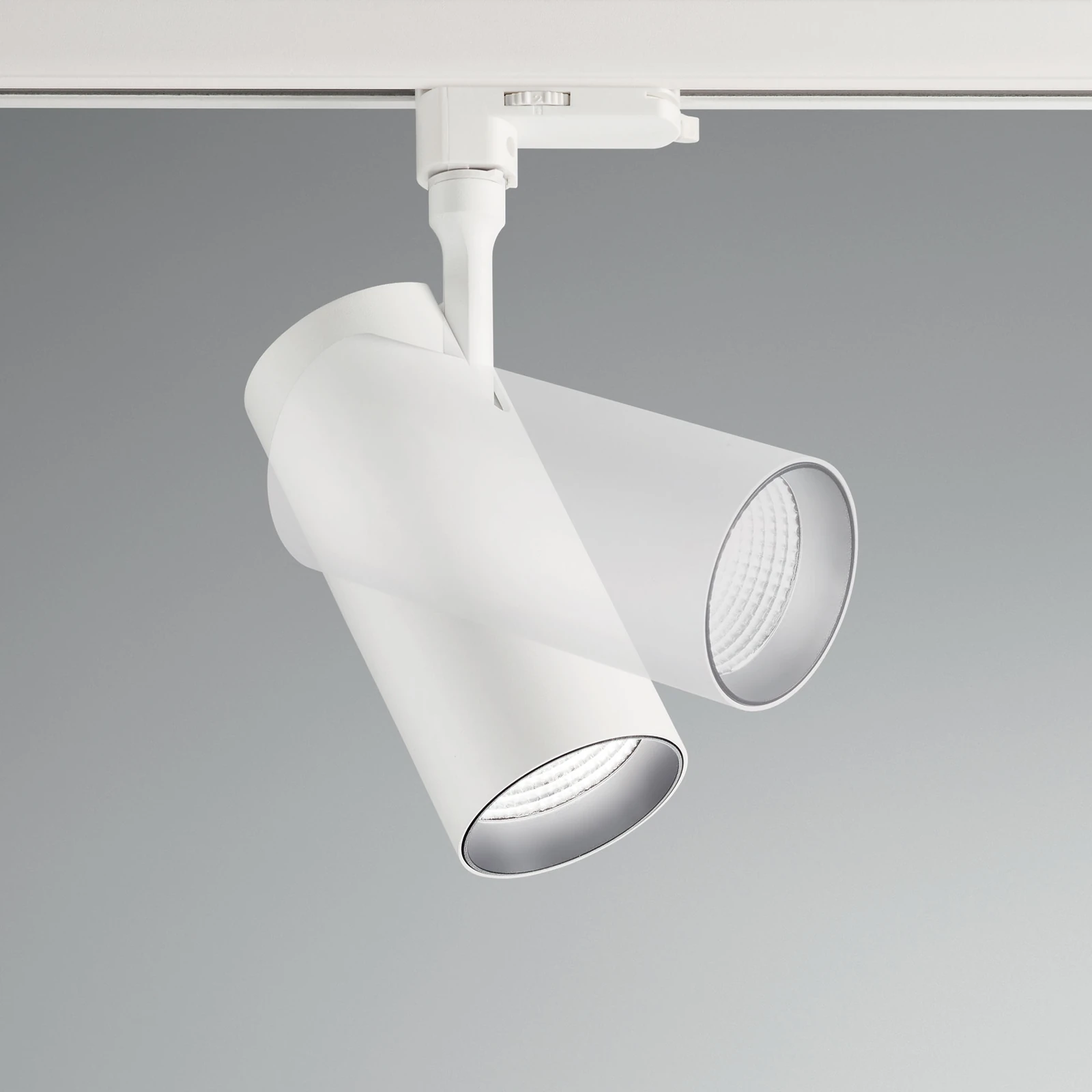

Cylindrical aluminum projector (extrusion + CNC manufacturing + forging) suitable for installation on three-phase track LINK. White or black powder coating, 350 ° rotating head and 90 ° adjustable.
No payment is taken online. Add everything you need to your enquiry list, then send it to us in one go. We confirm stock, delivery and your final price, usually within one working day. Trade and project pricing on request.
See also: All Ideal Lux Smile · All spotlights · 230V track lighting · Track and magnetic lighting
Specification
| Dimensions | L 80 × H 285 × D 87 mm (L length, H height, D depth) |
|---|---|
| Light source | Integrated LED 30W |
| LED lifetime | 50000 hours |
| Colour temperature | 4000 K |
| Light output (LED source) | 4200 lumen |
| IP rating | IP20 (indoor) |
| Bulb included | Integrated LED |
| Colour rendering (CRI) | > 80 |
| Light output (from fitting) | 3650 lm |
| Beam angle | 36° |
| Dimming | Non-dimmable, On-Off |
| Insulation class | II |
| Operating temperature | 0° ~ +40 °C |
| Warranty | 5 years |
| Net weight | 0.87 kg |
| EAN | 8021696189901 |
| Product code | 189901 |
Specification from the Ideal Lux technical sheet (rev. 21-07-2026), checked 2026-10-02. Images © Ideal Lux.
Same collection
Other Smile options.
Other sizes and finishes in the Ideal Lux Smile collection. Ask us for full specifications.
| Code | Fitting | How it differs | Price | ||
|---|---|---|---|---|---|
| 189574 | Smile Tr 3-phase 15W CRI80 24° 3000K Bi | 3000 K, 15w 24° bi, 0.61 kg | On request | View | |
| 189581 | Smile Tr 3-phase 15W CRI80 24° 3000K Ne | 3000 K, 15w 24°, 0.61 kg | On request | View | |
| 189611 | Smile Tr 3-phase 15W CRI80 24° 4000K Bi | 15w 24° bi, 0.61 kg | On request | View | |
| 189628 | Smile Tr 3-phase 15W CRI80 24° 4000K Ne | 15w 24°, 0.61 kg | On request | View | |
| 189758 | Smile Tr 3-phase 15W CRI80 36° 3000K Bi | 3000 K, 15w bi, 0.61 kg | On request | View | |
| 189765 | Smile Tr 3-phase 15W CRI80 36° 3000K Ne | 3000 K, 15w, 0.61 kg | On request | View | |
| 189796 | Smile Tr 3-phase 15W CRI80 36° 4000K Bi | 15w bi, 0.61 kg | On request | View | |
| 189802 | Smile Tr 3-phase 15W CRI80 36° 4000K Ne | 15w, 0.61 kg | On request | View | |
| 189932 | Smile Tr 3-phase 15W CRI80 50° 3000K Bi | 3000 K, 15w 50° bi, 0.61 kg | On request | View | |
| 189949 | Smile Tr 3-phase 15W CRI80 50° 3000K Ne | 3000 K, 15w 50°, 0.61 kg | On request | View | |
| 189956 | Smile Tr 3-phase 15W CRI80 50° 4000K Bi | 15w 50° bi, 0.61 kg | On request | View | |
| 189963 | Smile Tr 3-phase 15W CRI80 50° 4000K Ne | 15w 50°, 0.61 kg | On request | View | |
| 189598 | Smile Tr 3-phase 15W CRI90 24° 3000K Bi | 3000 K, 15w 24° bi cri90, 0.61 kg | On request | View | |
| 189604 | Smile Tr 3-phase 15W CRI90 24° 3000K Ne | 3000 K, 15w 24° cri90, 0.61 kg | On request | View | |
| 189772 | Smile Tr 3-phase 15W CRI90 36° 3000K Bi | 3000 K, 15w bi cri90, 0.61 kg | On request | View | |
| 189789 | Smile Tr 3-phase 15W CRI90 36° 3000K Ne | 3000 K, 15w cri90, 0.61 kg | On request | View |
