Ideal Lux · Steel collection
Steel AP1 D20 Mono-emission Wide 3000K White
Price on request · contact us for pricing

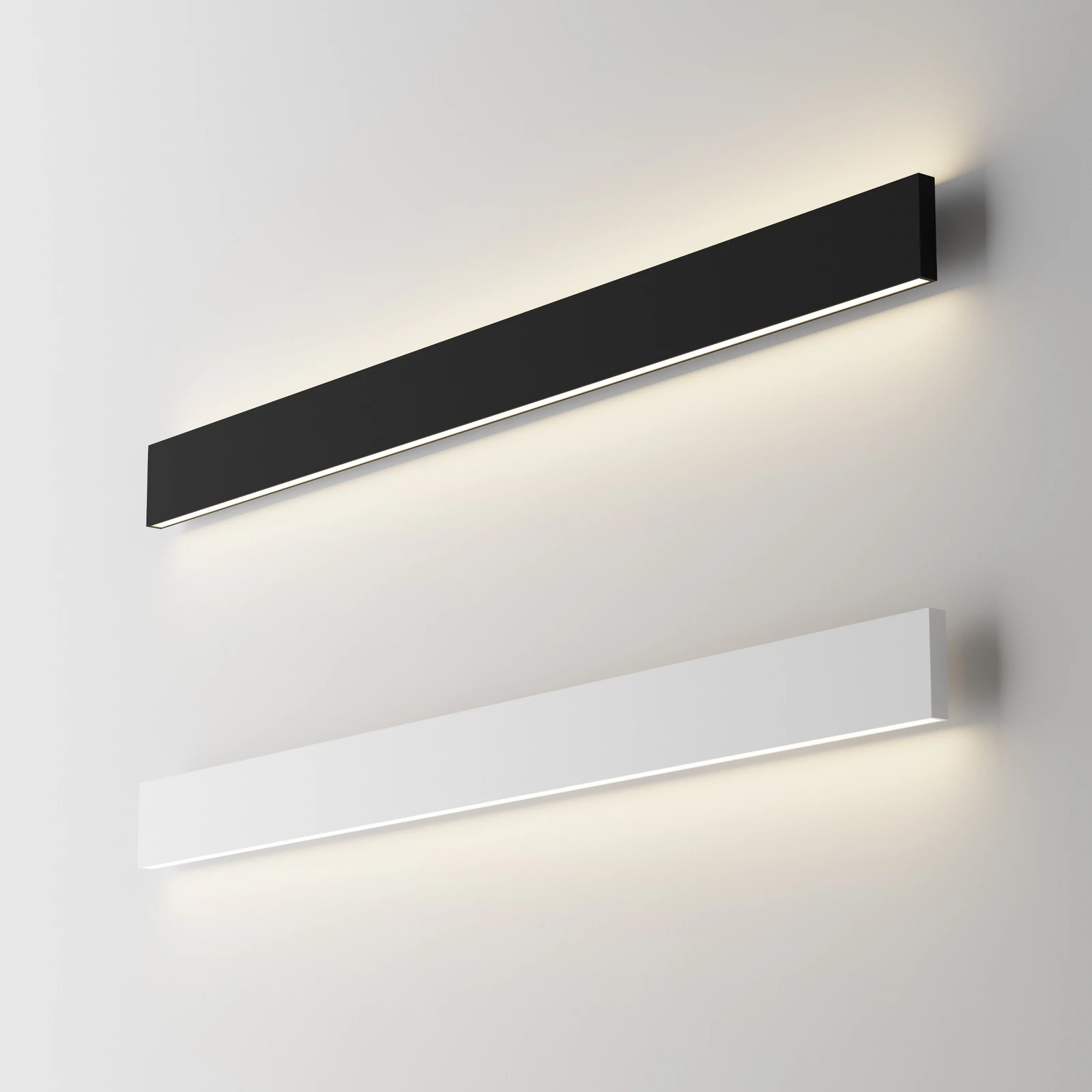

Linear aluminum lamp with direct and indirect light for wall installation. White or black finish available.
Compatible drivers, bulbs & accessories ↓
No payment is taken online. Add everything you need to your enquiry list, then send it to us in one go. We confirm stock, delivery and your final price, usually within one working day. Trade and project pricing on request.
See also: All Ideal Lux Steel · All technical systems
Specification
| Dimensions | L 1203 × H 94,2 × D 40 mm (L length, H height, D depth) |
|---|---|
| Light source | Integrated LED 29W |
| LED lifetime | 50000 hours |
| Colour temperature | 3000 K |
| Light output (LED source) | 3550 lumen |
| IP rating | IP20 (indoor) |
| Bulb included | Integrated LED |
| Colour rendering (CRI) | > 90 |
| Light output (from fitting) | 2310 lm |
| Beam angle | 104° |
| Dimming | 1, 1-10V |
| Insulation class | I |
| Operating temperature | 0° ~ +40 °C |
| Warranty | 5 years |
| Net weight | 1.6 kg |
| EAN | 8021696368887 |
| Product code | 368887 |
Specification from the Ideal Lux technical sheet (rev. 21-07-2026), checked 2026-10-02. Images © Ideal Lux.
Drivers, bulbs & accessories
What you need with this fitting.
Compatible drivers, bulbs and accessories listed by Ideal Lux for this fitting. Not sure which you need? Send us your layout and we will build the full parts list.
| Type | Code | Part | Price | ||
|---|---|---|---|---|---|
| Connector | 271712 | Steel D35 Straight Joint | On request | View | |
| Accessory | 270210 | Steel D35 Ceiling Mounting Kit | On request | View | |
| Accessory | 271750 | Steel D35 Suspension Kit 2000mm | On request | View | |
| Accessory | 276311 | Steel D35 Ceiling Rose With Kit Sosp 2000mm | On request | View | |
| Accessory | 276304 | Steel D35 Ceiling Rose With Suspension Kit 2 M Black | On request |
Same collection
Other Steel options.
Other sizes and finishes in the Ideal Lux Steel collection. Ask us for full specifications.
| Code | Fitting | How it differs | Price | ||
|---|---|---|---|---|---|
| 367576 | Steel AP1 D20 Mono-emission Wide 3000K Black | Black finish | On request | View | |
| 368917 | Steel AP1 D20 Mono-emission Wide 4000K White | 4000 K | On request | View | |
| 368894 | Steel AP1 D20 Mono-emission Wide 4000K Black | 4000 K, black finish | On request | View | |
| 233840 | Steel AP2 D20 Bi-emission Wide 3000K White | 2 lights, bi-emission, 1.25 kg | On request | View | |
| 242019 | Steel AP2 D20 Bi-emission Wide 3000K Black | 2 lights, black finish, bi-emission, 1.25 kg | On request | View | |
| 268095 | Steel AP2 D20 Bi-emission Wide 4000K White | 2 lights, 4000 K, bi-emission, 1.25 kg | On request | View | |
| 268071 | Steel AP2 D20 Bi-emission Wide 4000K Black | 2 lights, 4000 K, black finish, bi-emission | On request | View | |
| 271712 | Steel D35 Straight Joint | Ø 350 mm, giunto lineare, 0.1 kg | On request | View | |
| 270210 | Steel D35 Ceiling Mounting Kit | Ø 350 mm, kit montaggio soffitto, 0.16 kg | On request | View | |
| 271750 | Steel D35 Suspension Kit 2 M | Ø 350 mm, 2 kit mt sospensione, 0.07 kg | On request | View | |
| 276311 | Steel D35 Ceiling Rose With Suspension Kit 2 M White | Ø 350 mm, 2 con kit mt rosone sospensione, 0.2 kg | On request | View | |
| 276304 | Steel D35 Ceiling Rose With Suspension Kit 2 M Black | Ø 350 mm, black finish, 2 con kit mt rosone sospensione, 0.2 kg | On request | Ask | |
| 241982 | Steel SP D20 Straight Joint | Pendant version, giunto lineare, 0.05 kg | On request | View | |
| 370286 | Steel SP D20 Profile Corner Blank White | Pendant version, angolare cieco profilo, 0.3 kg | On request | View | |
| 370200 | Steel SP D20 Profile Corner Blank Black | Pendant version, black finish, angolare cieco profilo, 0.3 kg | On request | View | |
| 241999 | Steel SP D20 Profile Corner Wide 3000K White | Pendant version, angolare profilo, 0.26 kg | On request | Ask |
