Ideal Lux · Steel collection

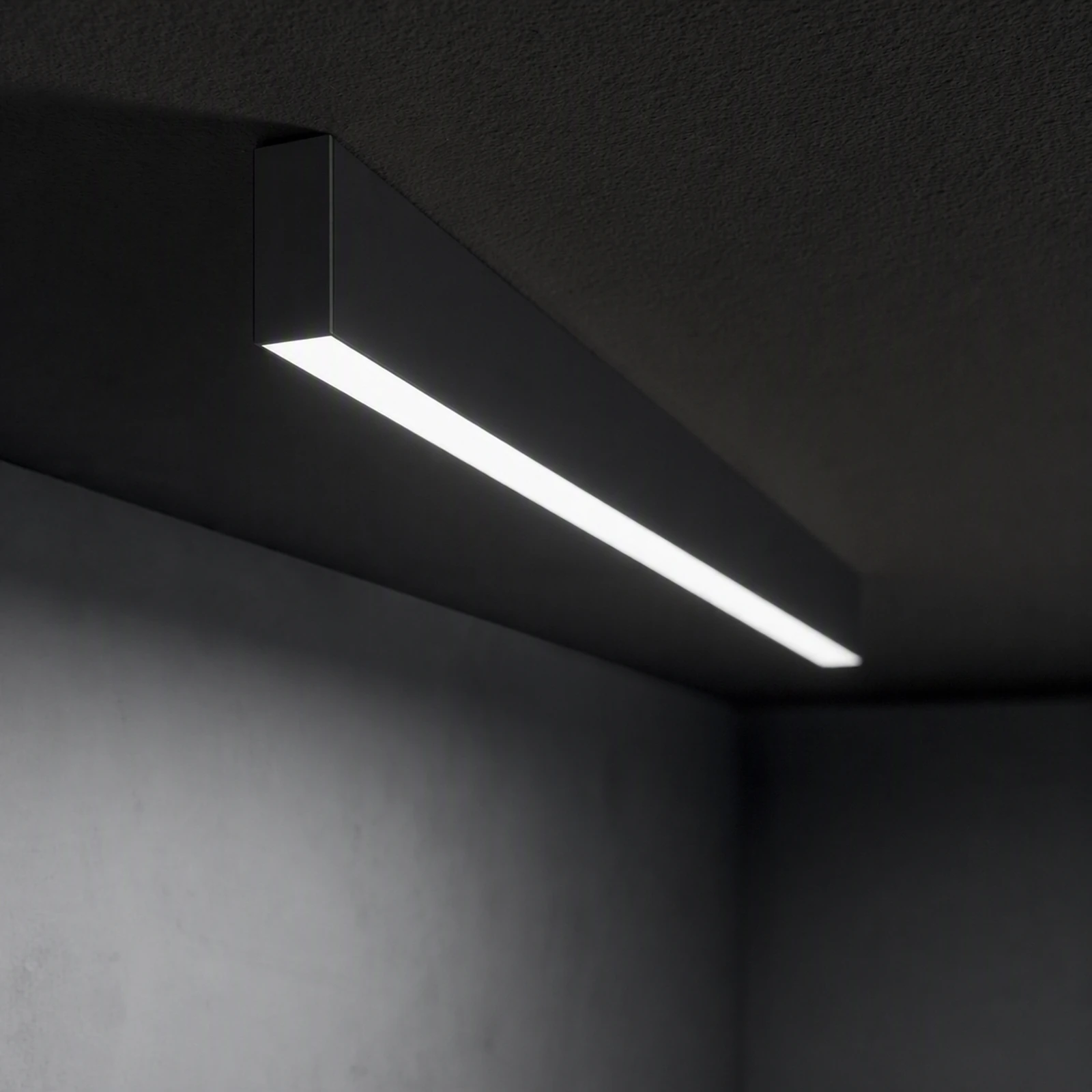

Steel SP2 D35 Bi-emission Wide Black

Configure · 10 options

Size

Finish

BlackWhite

Colour temperature

3000K4000K

Selected: 270197

3000K

£300.00 ex VAT · £360.00 inc VAT

Family of linear luminaires with extruded aluminium body, powder coated in white or black finish. The family is available in 4 models with different sections and options for installation and control.

Compatible drivers, bulbs & accessories ↓

No payment is taken online. Add everything you need to your enquiry list, then send it to us in one go. In stock. We confirm delivery and your final price, usually within one working day. Trade and project pricing on request.

Specification

DimensionsL 1070 × H 80 × D 35 mm (L length, H height, D depth)
Light sourceIntegrated LED 36W
LED lifetime50000 hours
Colour temperature3000 K
Light output (LED source)4200 lumen
IP ratingIP20 (indoor)
Bulb includedIntegrated LED
Colour rendering (CRI)> 90
Light output (from fitting)2750 lm
Beam angle70+110°
DimmingNon-dimmable, On-Off
Insulation classI
Operating temperature0° ~ +40 °C
Warranty5 years
Net weight1.99 kg
EAN8021696270197
Product code270197

Specification from the Ideal Lux technical sheet (rev. 23-07-2026), checked 2026-10-02. Images © Ideal Lux.

Drivers, bulbs & accessories

What you need with this fitting.

Compatible drivers, bulbs and accessories listed by Ideal Lux for this fitting. Not sure which you need? Send us your layout and we will build the full parts list.

TypeCodePartPrice ex VATPrice inc VAT
Connector271712Steel D35 Straight Joint£7.00£8.40 View
Accessory270210Steel D35 Ceiling Mounting Kit£31.00£37.20 View
Accessory271750Steel D35 Suspension Kit 2000mm£13.00£15.60 View
Accessory276311Steel D35 Ceiling Rose With Kit Sosp 2000mm£35.00£42.00 View
Accessory276304Steel D35 Ceiling Rose With Suspension Kit 2 M Black£35.00£42.00

Same collection

Other Steel options.

Other sizes and finishes in the Ideal Lux Steel collection. Ask us for full specifications.

CodeFittingHow it differsPrice ex VATPrice inc VAT
368887Steel AP1 D20 Mono-emission Wide 3000K WhiteWall version, single light, Ø 200 mm, white finish£195.00£234.00 View
367576Steel AP1 D20 Mono-emission Wide 3000K BlackWall version, single light, Ø 200 mm, mono-emission£195.00£234.00 View
368917Steel AP1 D20 Mono-emission Wide 4000K WhiteWall version, single light, Ø 200 mm, 4000 K£195.00£234.00 View
368894Steel AP1 D20 Mono-emission Wide 4000K BlackWall version, single light, Ø 200 mm, 4000 K£195.00£234.00 View
233840Steel AP2 D20 Bi-emission Wide 3000K WhiteWall version, Ø 200 mm, white finish, 1.25 kg£210.00£252.00 View
242019Steel AP2 D20 Bi-emission Wide 3000K BlackWall version, Ø 200 mm, 1.25 kg£210.00£252.00 View
268095Steel AP2 D20 Bi-emission Wide 4000K WhiteWall version, Ø 200 mm, 4000 K, white finish£210.00£252.00 View
268071Steel AP2 D20 Bi-emission Wide 4000K BlackWall version, Ø 200 mm, 4000 K, 1.25 kg£210.00£252.00 View
271712Steel D35 Straight JointStraight joint, 0.1 kg£7.00£8.40 View
270210Steel D35 Ceiling Mounting KitCeiling mounting kit, 0.16 kg£31.00£37.20 View
271750Steel D35 Suspension Kit 2 M2 kit m suspension, 0.07 kg£13.00£15.60 View
276311Steel D35 Ceiling Rose With Suspension Kit 2 M WhiteWhite finish, 2 with kit m ceiling rose suspension, 0.2 kg£35.00£42.00 View
276304Steel D35 Ceiling Rose With Suspension Kit 2 M Black2 with kit m ceiling rose suspension, 0.2 kg£35.00£42.00 Ask
241982Steel SP D20 Straight JointSingle light, Ø 200 mm, straight joint, 0.05 kg£6.00£7.20 View
370286Steel SP D20 Profile Corner Blank WhiteSingle light, Ø 200 mm, white finish, corner blank profile£47.00£56.40 View
370200Steel SP D20 Profile Corner Blank BlackSingle light, Ø 200 mm, corner blank profile, 0.3 kg£47.00£56.40 View
