Ideal Lux · Steel collection

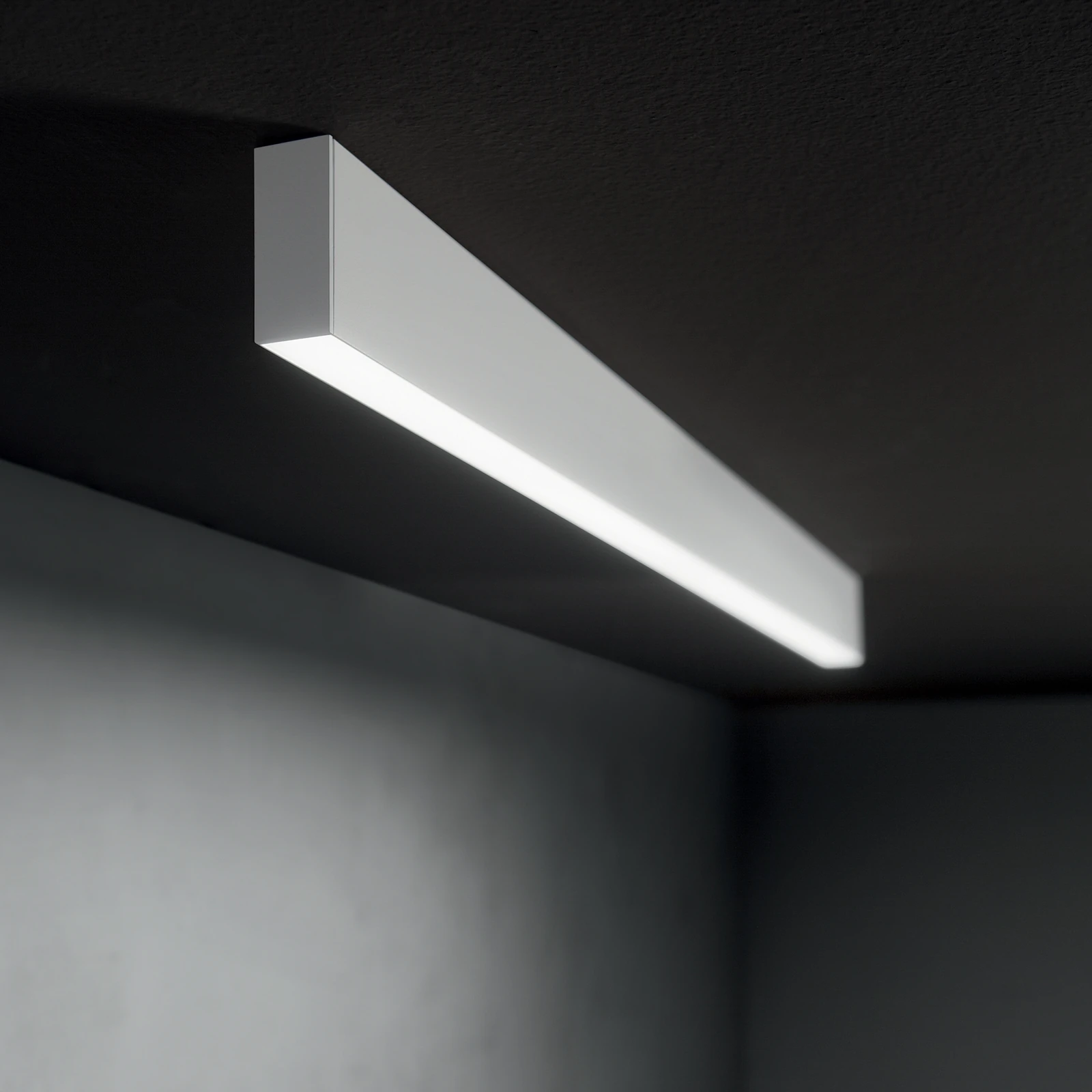

Steel SP2 D35 Bi-emission Wide White
4000K
£300.00 ex VAT · £360.00 inc VAT
Family of linear luminaires with extruded aluminium body, powder coated in white or black finish. The family is available in 4 models with different sections and options for installation and control.
Compatible drivers, bulbs & accessories ↓
No payment is taken online. Add everything you need to your enquiry list, then send it to us in one go. In stock. We confirm delivery and your final price, usually within one working day. Trade and project pricing on request.
See also: All Ideal Lux Steel · All technical systems · Linear pendant lights
Specification
| Dimensions | L 1070 × H 80 × D 35 mm (L length, H height, D depth) |
|---|---|
| Light source | Integrated LED 36W |
| LED lifetime | 50000 hours |
| Colour temperature | 4000 K |
| Light output (LED source) | 4500 lumen |
| IP rating | IP20 (indoor) |
| Bulb included | Integrated LED |
| Colour rendering (CRI) | > 90 |
| Light output (from fitting) | 2900 lm |
| Beam angle | 70+110° |
| Dimming | Non-dimmable, On-Off |
| Insulation class | I |
| Operating temperature | 0° ~ +40 °C |
| Warranty | 5 years |
| Net weight | 1.99 kg |
| EAN | 8021696270203 |
| Product code | 270203 |
Specification from the Ideal Lux technical sheet (rev. 23-07-2026), checked 2026-10-02. Images © Ideal Lux.
Drivers, bulbs & accessories
What you need with this fitting.
Compatible drivers, bulbs and accessories listed by Ideal Lux for this fitting. Not sure which you need? Send us your layout and we will build the full parts list.
| Type | Code | Part | Price ex VAT | Price inc VAT | |
|---|---|---|---|---|---|
| Connector | 271712 | Steel D35 Straight Joint | £7.00 | £8.40 | View |
| Accessory | 270210 | Steel D35 Ceiling Mounting Kit | £31.00 | £37.20 | View |
| Accessory | 271750 | Steel D35 Suspension Kit 2000mm | £13.00 | £15.60 | View |
| Accessory | 276311 | Steel D35 Ceiling Rose With Kit Sosp 2000mm | £35.00 | £42.00 | View |
| Accessory | 276304 | Steel D35 Ceiling Rose With Suspension Kit 2 M Black | £35.00 | £42.00 |
Same collection
Other Steel options.
Other sizes and finishes in the Ideal Lux Steel collection. Ask us for full specifications.
| Code | Fitting | How it differs | Price ex VAT | Price inc VAT | |
|---|---|---|---|---|---|
| 368887 | Steel AP1 D20 Mono-emission Wide 3000K White | Wall version, single light, Ø 200 mm, 3000 K | £195.00 | £234.00 | View |
| 367576 | Steel AP1 D20 Mono-emission Wide 3000K Black | Wall version, single light, Ø 200 mm, 3000 K | £195.00 | £234.00 | View |
| 368917 | Steel AP1 D20 Mono-emission Wide 4000K White | Wall version, single light, Ø 200 mm, mono-emission | £195.00 | £234.00 | View |
| 368894 | Steel AP1 D20 Mono-emission Wide 4000K Black | Wall version, single light, Ø 200 mm, black finish | £195.00 | £234.00 | View |
| 233840 | Steel AP2 D20 Bi-emission Wide 3000K White | Wall version, Ø 200 mm, 3000 K, 1.25 kg | £210.00 | £252.00 | View |
| 242019 | Steel AP2 D20 Bi-emission Wide 3000K Black | Wall version, Ø 200 mm, 3000 K, black finish | £210.00 | £252.00 | View |
| 268095 | Steel AP2 D20 Bi-emission Wide 4000K White | Wall version, Ø 200 mm, 1.25 kg | £210.00 | £252.00 | View |
| 268071 | Steel AP2 D20 Bi-emission Wide 4000K Black | Wall version, Ø 200 mm, black finish, 1.25 kg | £210.00 | £252.00 | View |
| 271712 | Steel D35 Straight Joint | Straight joint, 0.1 kg | £7.00 | £8.40 | View |
| 270210 | Steel D35 Ceiling Mounting Kit | Ceiling mounting kit, 0.16 kg | £31.00 | £37.20 | View |
| 271750 | Steel D35 Suspension Kit 2 M | 2 kit m suspension, 0.07 kg | £13.00 | £15.60 | View |
| 276311 | Steel D35 Ceiling Rose With Suspension Kit 2 M White | 2 with kit m ceiling rose suspension, 0.2 kg | £35.00 | £42.00 | View |
| 276304 | Steel D35 Ceiling Rose With Suspension Kit 2 M Black | Black finish, 2 with kit m ceiling rose suspension, 0.2 kg | £35.00 | £42.00 | Ask |
| 241982 | Steel SP D20 Straight Joint | Single light, Ø 200 mm, straight joint, 0.05 kg | £6.00 | £7.20 | View |
| 370286 | Steel SP D20 Profile Corner Blank White | Single light, Ø 200 mm, corner blank profile, 0.3 kg | £47.00 | £56.40 | View |
| 370200 | Steel SP D20 Profile Corner Blank Black | Single light, Ø 200 mm, black finish, corner blank profile | £47.00 | £56.40 | View |
Goes with
Complete the look.
Matching Steel pieces for the same room: pair the ceiling, wall and floor lights so the scheme feels considered.
Alternatives
Similar fittings.
Similar technical systems from other Ideal Lux collections, in a similar style and price range.
